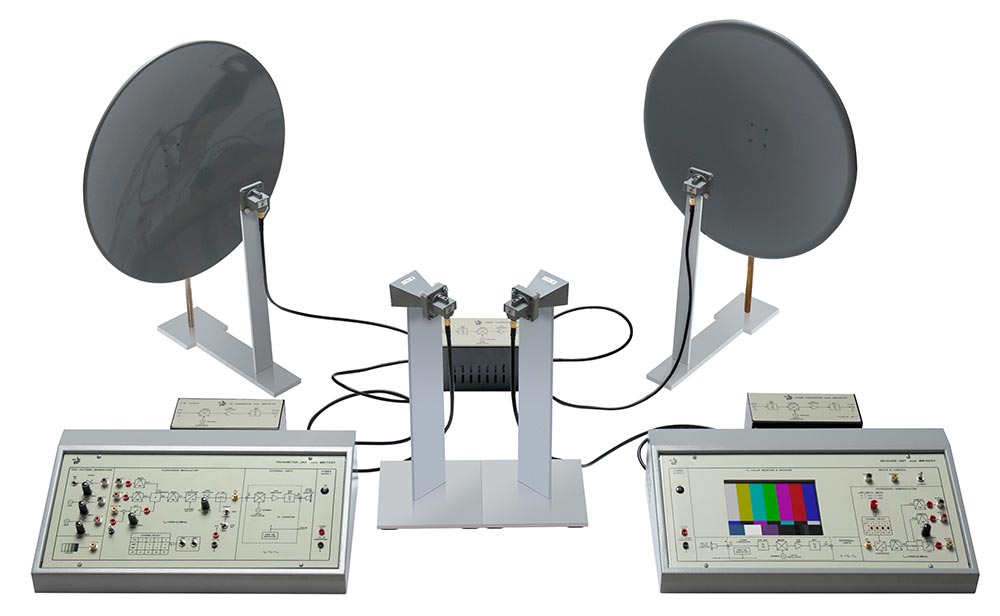

SATELLITE COMMUNICATION SYSTEM

SATELLITE COMMUNICATION SYSTEM

Silver-plated internal waveguide
• 2 waveguides – coaxial adapter
• 4 coax fixed attenuators:- Impedance: 50 Ω- SMA/SMA connectors- Range: DC to 3000 MHz- Attenuation: 3, 6, 10, 20dB
• 1 coax detector:- Input impedance: 50 Ω- SMA/BNC connectors- Range: 10 to 12400 MHz – Max input level: +20 dBm- Negative polarity
• 2 reflector planes:- 1 with 180 X 180 mm- 1 with 300 X 300 mm
• 1 Polarization plane:- with 180 X 180 mm
• 4 supports and connection cables
• Microphone
• Transmitter unit including:- Regulated power supply protected from short-circuit- Audio generator- Colour Video bar generato
