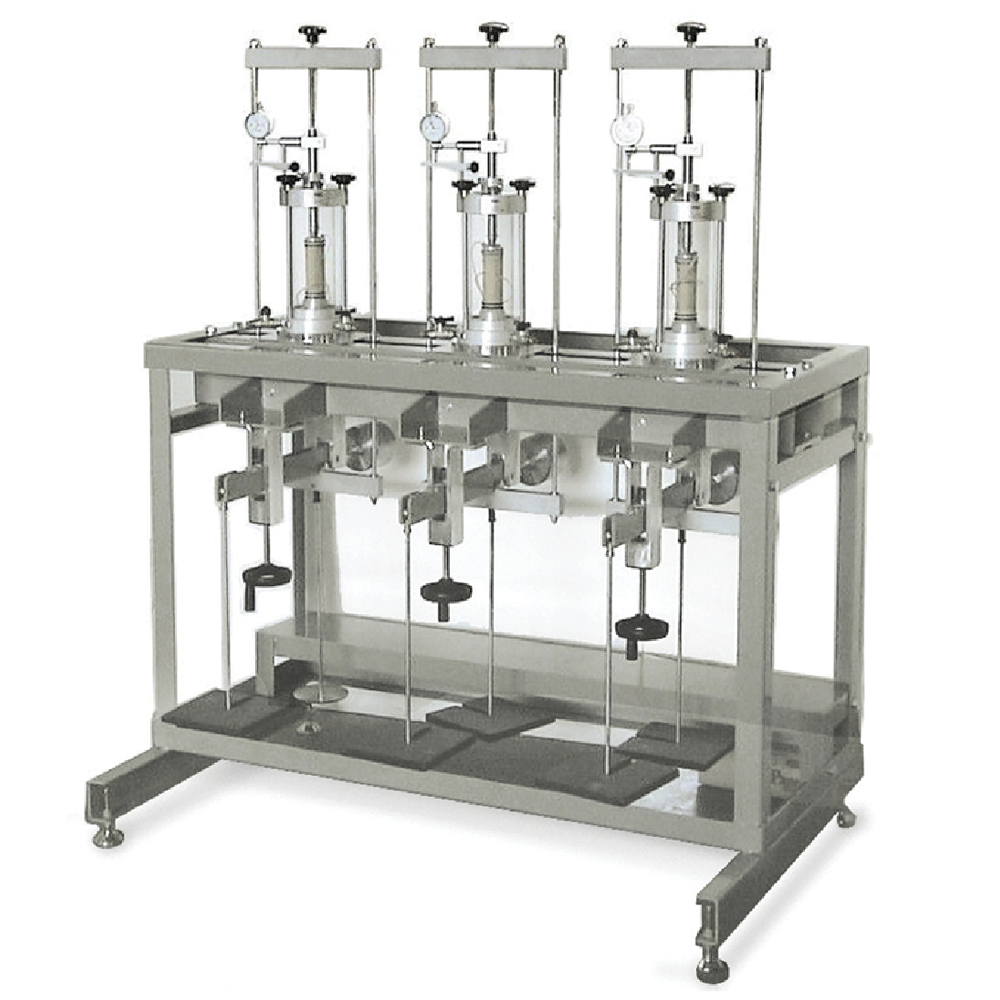

Consolidation Bench for Triaxial Cells

Consolidation Bench apparatus consists of a steel bench complete with three load frames and centering platens, for all our triaxial cells (28-WF0410/B, 28-WF0411/B, 28-WF0416/B, 28-WF4050, 28-WF4070, 28WF4100) for specimens 35 to 100 mm dia. It can also be used for other make of triaxial cells, provided that they are equipped with a centering hole 13 mm dia. x 3 mm deep. Each consolidation frame can be equipped with a beam loading device to reduce the number of dead weights required for anisotropic consolidation (see accessories). Weights can be placed on both the centre hanger and on the lever hanger. The weights of the loading frames have been reduced to minimum so that a counterbalance of the frame is not required.
