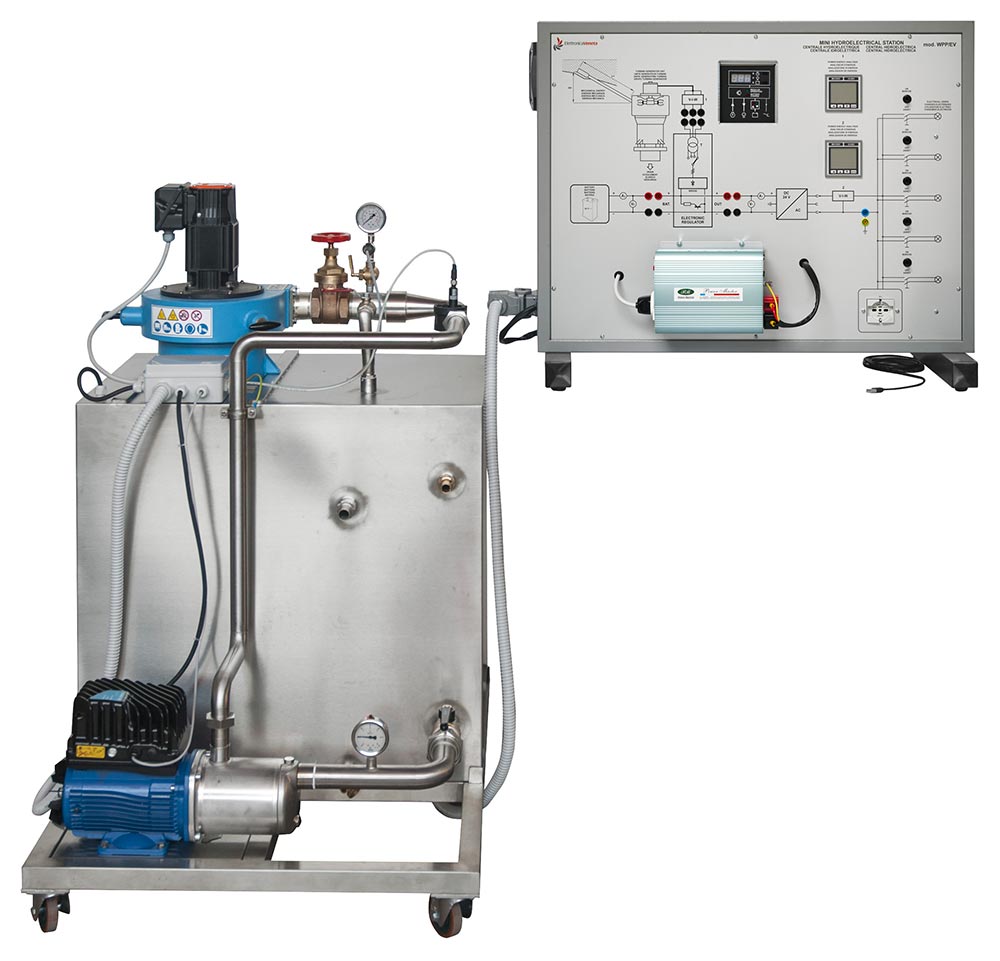

COMPUTERIZED MINI HYDROELECTRIC

COMPUTERIZED MINI HYDROELECTRIC  frequency: 200 Hz- nominal electric power output: 0,5 kW (height 30 m, flow
rate 3 l/s)- generator speed: 3000 rpm
• AISI 304 stainless steel horizontal axis multistage monoblock
pump:- power: 0,75 kW- maximum flow rate: 10 m3/h- maximum head: 43 m- frequency converter for rpm adjustment
• AISI 304 stainless steel water tank, capacity: 250 liters
• AISI 304 stainless steel hydraulic circuit feeding the turbine
generator unit with:- ball valve and dial vacuum gauge, range: -1 ÷ 5 bar,
at pump suction- dial pressure gauge, range: 0 ÷ 6 bar, and gate valve
at pump discharge- ball valve at distributor-tank by-pass
Flow rate sensor for measuring and transmitting the water
flow rate to the control panel
• Transducer type: rotating vane
• Range: 25 ÷ 250 liters/minute
Pressure sensor for measuring and transmitting the water
pressure to the control panel
• Transducer type: piezoresistive
• Range: 0 ÷ 16 bar
