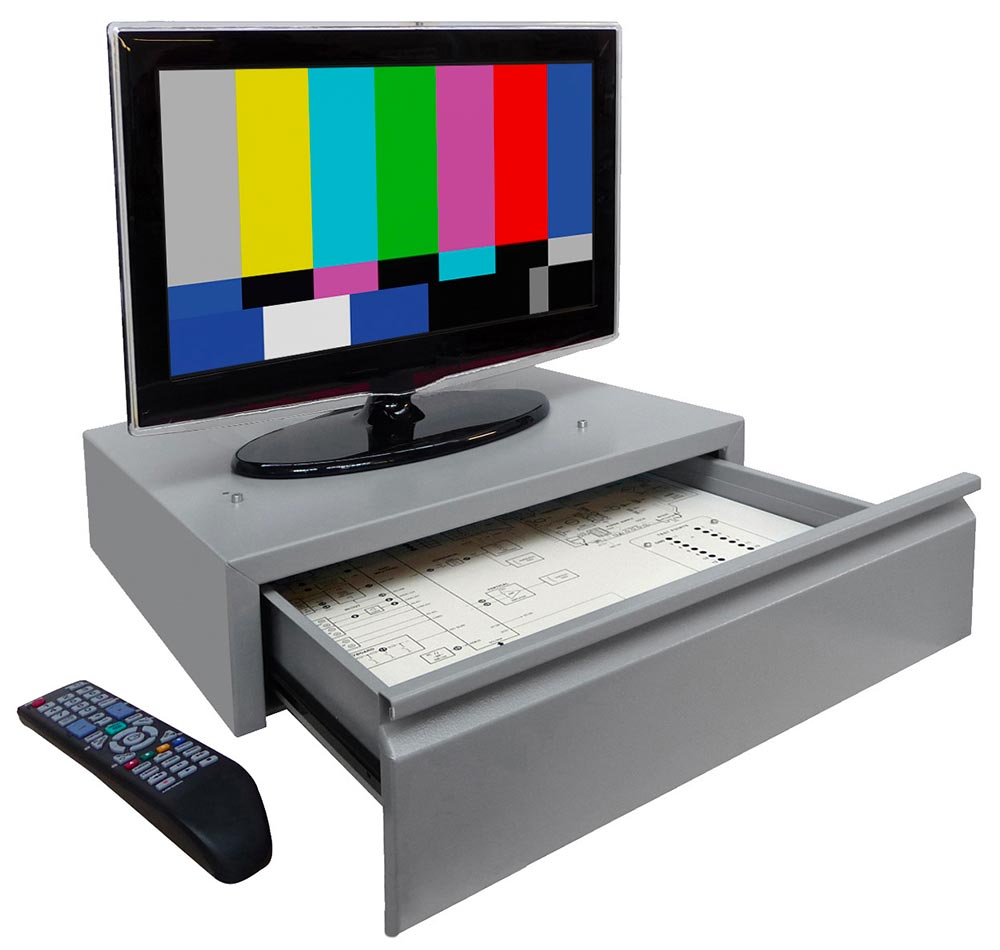

COMPACT MULTISTANDARD LCD TV TRAINER

COMPACT MULTISTANDARD LCD TV TRAINER

TV receiver with 19” LCD colour monitor
• Display mode: – Resolution: from 640×480 to 1360×768 pixels- Horizontal frequency: 60 kHz max- Vertical frequency: 75 Hz max- Clock pixel frequency: 85 MHz max
• Standard: PAL/SECAM/NTSC (analogue), DVB-T (digital)
• Coding: MPEG-2
• Connectors: Audio-Video EuroSCART, HDMI and USB
• Block diagram composed of:- Power supply- Tuner and Audio/Video processor – Microcontroller(Sysco)- LCD panel driver and power supply
• Included documentation:- Internal mimic diagram
• Antenna impedance: 75 Ohm
• Channels: VHF e UHF
• Sound system: stereo with internal speakers
• On-screen display (OSD) of the television functions
• Infrared remote control
• 24 Test points mounted on the synoptic panel and
connected directly to the circuits of the equipment circuits
• Fault simulator: 8 faults
Power supply:
Dimensions:
Weight:
SUPPLIED WITH
230 Vac 50 Hz single-phase – 50 VA
(Other voltage and frequency under request)
470 x 450 x 490 mm (closed)
10 kg
