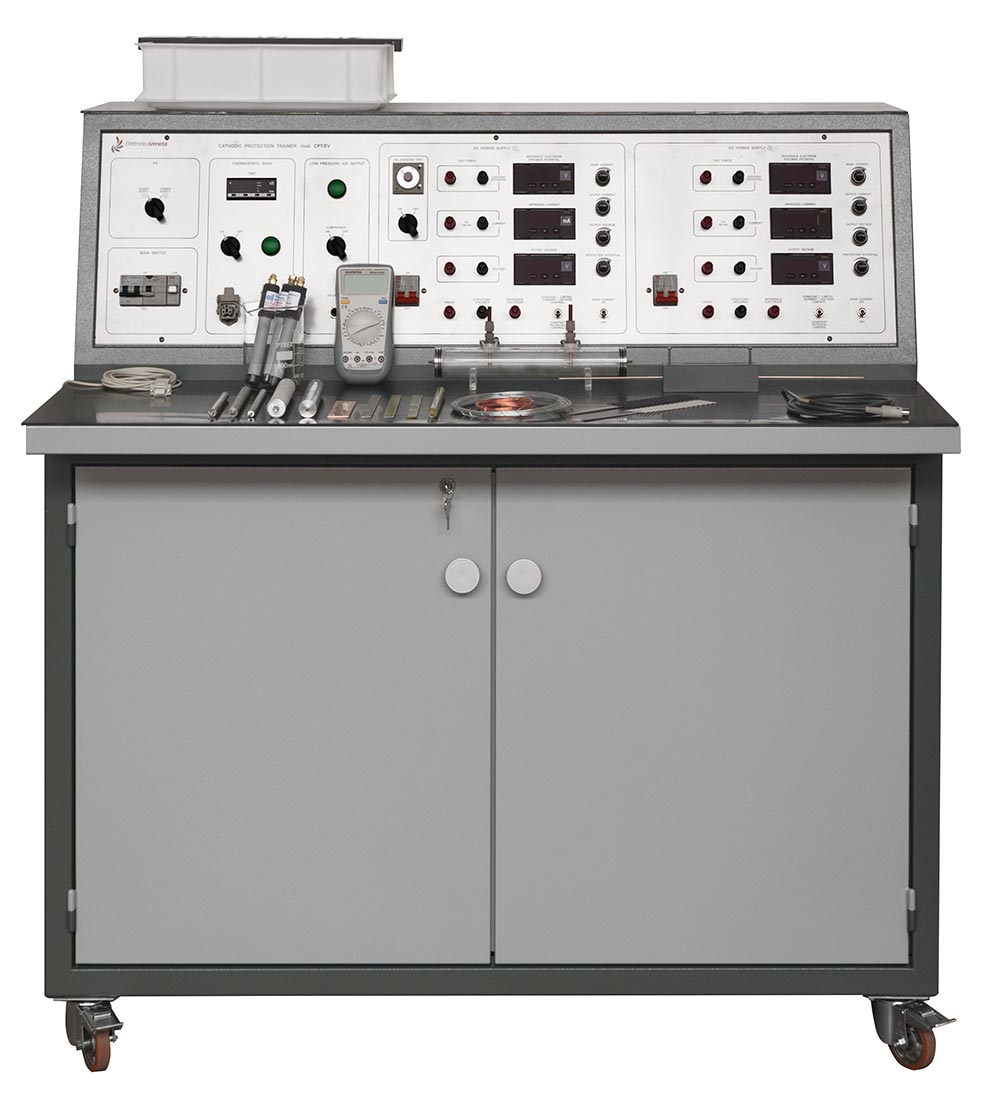

Cathodic protection trainer

Cathodic protection trainer

• Wheeled bench including:
  • Console with measuring instrument and mains connection (Vac)
  • Waterproof top surface
  • Locked cabinet

• The console includes:
  • 4 digital voltmeters
  • 2 digital ammeters
  • 2 DC power supplies, potential or constant current mode,
    base current adjustment
  • Thermostat with Pt100 temperature sensor
  • Air compressor with sprayer
  • PC interface for data acquisition and storage

• The cabinet can be used to store the following items:
  • Safety glasses and glows
  • Handheld digital multimeter
  • Cu/CuSO4 reference electrode
  • Ag/AgCl reference electrode
  • Zn reference electrode
  • 6 copper electrodes
  • 2 carbon steel electrodes
  • Basin for the electrolytic test bath
  • Basin for the electrolytic test bath with electrical resistance
  • 7 zinc anodes
  • 5 magnesium anodes
  • 2 aluminum anodes
  • 2 Ti/Pt anodes
  • 2 Ti/MMO anodes
  • Copper wire, 6 meters
  • Iron wire, 12 meters
  • Galvanized iron wire, 10 meters
  • Resistivity cell
  • PVC brick for the study of resistance

• Fully epoxy resin-coated Carbon steel electrode, Ø 15 x 200 mm
• 6 carbon steel electrodes, 15 x 200 x 2 mm
• 2 fully epoxy resin-coated Carbon steel electrodes, 15 x 200 x 2 mm
• 2 partially epoxy resin-coated Carbon steel electrodes, 15 x 200 x 2 mm
• Various reagent with plastic containers and safety data sheet
• Set of spare fuse
• Set of connecting leads
• 2 beakers, capacity 600ml each
• Saltbridge
